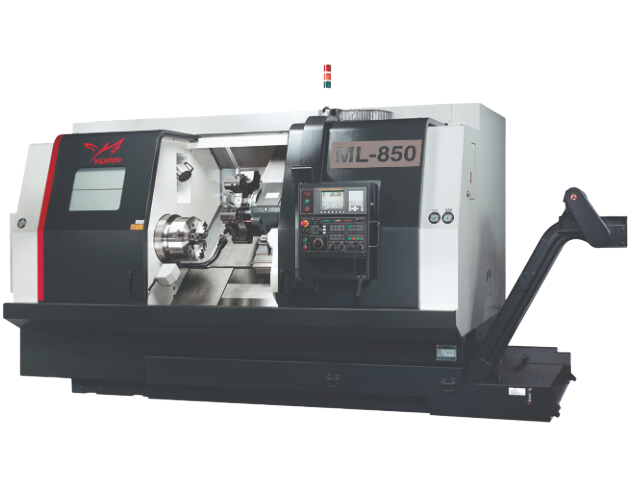

ML-850
1 / 1
ML-850
Linear Way Turning Center
Description:
  • Finite Element Analysis (FEA)
  • Highly rigid headstock
  • Automatic tailstock
  • Linear Guideways
  • High Precision, high speed ballscrews
Scroll Right for More

ITEM ML-850
Swing Over bed Ø850
Swing Over Saddle Ø600
Max. Machining Dia. Ø720/ Ø600
Max. Machining Length Ø720 x 150 + Ø600 x1,110
Draw Bar Dia. STD: Ø116
OPT: Ø120
X-axis 380 (360+20) mm
Z-axis 1,330 mm
C-axis (Optional) 360˚ (0.001˚)
Tool Capacity STD:12 pcs
Chuck Diameter STD: 15”
OPT: 18”
Spindle Speeds 40-2,000 (4-step gearbox)
Spindle Nose A2-11


 CF-axis Function
  • The CF-axis features higher rigidity and is ideal for heavy cutting application.
  • The CF-axis function in combination witht the live tooling turret enable the machine to perform milling, drilling, and tapping operations with a single setup.
