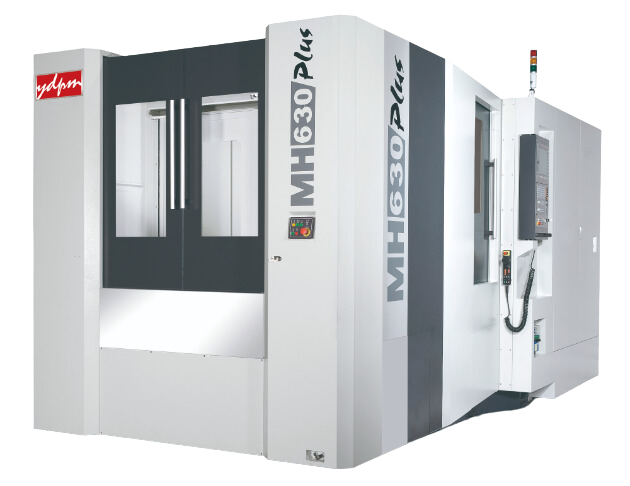

MH-630 PLUS
Horizontal Machining Center
Scroll Right for More| ITEM | MH-630 PLUS |
| Working Table Dimensions | 630 x 630 mm |
| Max. Loading Capacity | 1,200 kg |
| B Minimum Indexing | STD: 1° OPT: 0.001° |
| Pallet Capacity | 2 pcs |
| Max. Diameter of Workpiece | Ø1050 |
| Max. Height of Workpiece | 1300 mm |
| Max. Travel of X/Y/Z-axis | 1,050 / 900 / 1,050 mm |
| Distance from Spindle Nose to Table Center | 50-1,100 mm |
| Spindle Taper | ISO No. 50 |
| Spindle Speeds | STD: 10,000 rpm (direct-drive) OPT: 12,000 rpm (direct-drive) 15,000 rpm (direct-drive) |
| Tool Capacity | STD: 60 pcs OPT: 120, 180 pcs |
