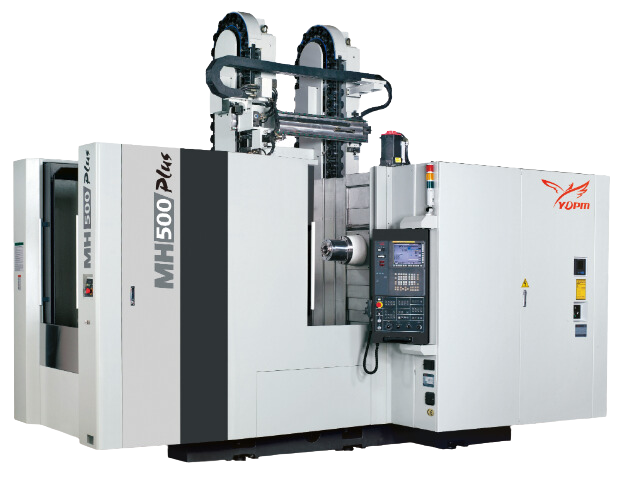

MH-500 PLUS
Horizontal Machining Center
Scroll Right for More| ITEM | MH-500 PLUS E TYPE | MH-500 PLUS P TYPE |
| Working Table Dimensions | 500 x 500 mm | 500 x 500 mm |
| Max. Loading Capacity | 500kg | 500kg |
| B Minimum Indexing | STD: 0.001° OPT: 1° |
STD: 0.001° OPT: 1° |
| Max. Speed of B-axis | STD: 35 rpm (0.001°) OPT: 25 rpm (1°) |
STD: 50 rpm (0.001°) OPT: 25 rpm (1°) |
| Pallet Capacity | 2 pcs | 2 pcs |
| Max. Diameter of Workpiece | Ø780 | Ø780 |
| Max. Height of Workpiece | 750 mm | 750 mm |
| Max. Travel of X/Y/Z-axis | 800 / 650 / 800 mm | 800 / 650 / 800 mm |
| Distance from Spindle Nose to Table Center | 150-950 mm | 150-950 mm |
| Spindle Taper | ISO No. 50 | ISO No. 50 |
| Spindle Speeds | STD: 10,000 rpm (direct-drive) OPT: 12,000 rpm (direct-drive) 15,000 rpm (direct-drive) |
STD: 10,000 rpm (direct-drive) OPT: 12,000 rpm (direct-drive) 15,000 rpm (direct-drive) |
| Tool Capacity | STD: 40 pcs OPT: 60, 120, 180 pcs |
STD: 40 pcs OPT: 60, 120, 180 pcs |
