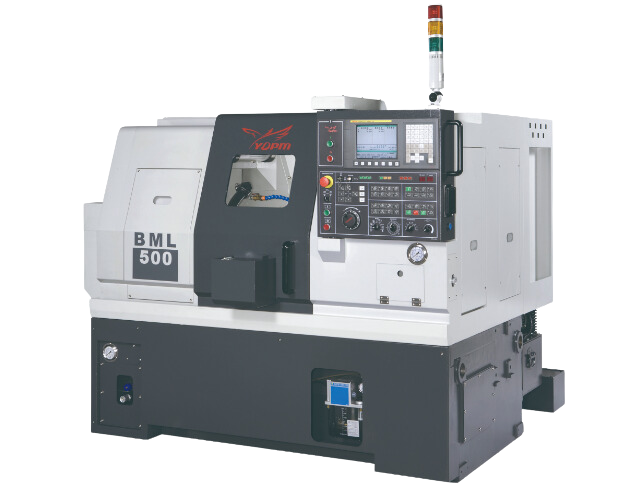

BML-500
Boxway Turning Center
Description：
- Slant bed design
- High quality cast iron
- Box ways on X, Y, Z axes
- Twin spindles // single turret
Scroll Right for More| ITEM | BML-500 |
| Swing Over bed | Ø500 |
| Swing Over Saddle | Ø390 |
| Max. Machining Dia. | Ø360 |
| Max. Machining Length | 300 mm |
| X-axis | 190(180+15) mm |
| Z-axis | 330 mm |
| C-axis (Optional) | 360˚ (0.001˚) |
| Turret Capacity | STD:10 pcs OPT:8 pcs |
| Chuck Diameter | 6” |
| Spindle Speeds | 50-6,000 rpm (A2-5) |
| Spindle Nose | A2-5 |
