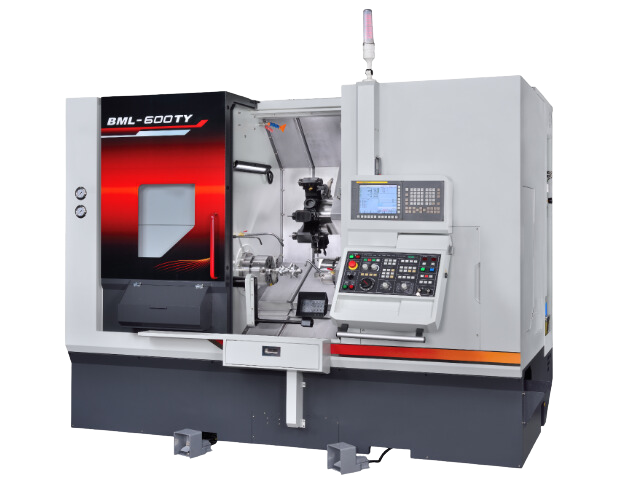

BML-600M Series
Boxway Turning Center
Description：
- Slant bed design
- High quality cast iron
- Box ways on X, Y, Z axes
- Twin spindles/ single turret
Scroll Right for More| ITEM | BML-600M | BML-600MY | BML-600MT | BML-600MTY |
| Swing Over bed | Ø600 | Ø600 | Ø600 | Ø600 |
| Swing Over Saddle | Ø450 | Ø450 | Ø450 | Ø450 |
| Max. Machining Dia. | Ø420 | BMT65: Ø380 VDI40: Ø285 |
Ø420 | BMT65: Ø380 VDI40: Ø285 |
| Max. Machining Length | STD: 780 mm (10”) OPT: 760 mm (12”) |
BMT65: STD: 720 (10”) OPT: 700 (12”) VDI40: STD: 760 (10”) OPT: 740 (12”) |
STD: 710 mm (10”) OPT: 690 mm (12”) |
BMT65: STD: 690 (10”) OPT: 670 (12”) VDI40: STD: 710 (10”) OPT: 690 (12”) |
| Draw Bar Dia. | STD: Ø75 (10") OPT: Ø78 (10")/ Ø91 (12") |
STD: Ø75 (10") OPT: Ø78 (10") / Ø91 (12") |
Main Spindle: STD: Ø75 (10") OPT: Ø78 (10")/ Ø91 (12") Sub Spindle: Ø45 |
|
| X-axis | 230(210+20) mm | BMT65: 206 (190+16) mm VDI40: 206 (142.5+63.5) mm |
230(210+20) mm | BMT65: 206(190+16) mm VDI40: 206(142.5+63.5) mm |
| Y-axis | - | 100 (50+50) mm | - | 100(50+50) mm |
| Z-axis (Optional) | 830 mm (10”) 820 mm (12”) |
BMT65:765 mm VDI40: 805 mm |
830 mm | BMT65: 690 mm VDI40: 735 mm |
| Tool Capacity | STD: 10 pcs OPT: 12 pcs |
12 pcs |
STD: 10 pcs OPT: 12 pcs |
12 pcs |
| Chuck Diameter | STD: 10" OPT: 12" |
STD: 10" OPT: 12" |
STD: 10"+6”(W) OPT: 12”+6”(W) |
STD: 10"+6”(W) OPT: 12”+6”(W) |
| Spindle Speeds | STD: 50-3,500 (A2-8, 75mm, 10") OPT: 50-3,000 (A2-8, 78mm, 10") 50-2,500 (A2-8, 91mm, 12") |
STD: 50-3,500 (A2-8, 75mm, 10") OPT: 50-3,000 (A2-8, 78mm, 10") 50-2,500 (A2-8, 91mm, 12") |
Main Spindle: STD: 50-3,500(A2-8, 75mm, 10") OPT: 50-3,000(A2-8, 78mm, 10") 50-2,500(A2-8, 91mm, 12") Sub Spindle: 6,000 (A2-5) |
|
| Spindle Nose | A2-8 | A2-8 | Main Spindle: A2-8 Sub Spindle: A2-5 |
|
CS-Axis Function
- The CS-axis function in combination with the live tooling turret enable the machine to perform milling, drilling and tapping operations with only a single setup.
- CS-axis is equipped with a rotary encoder for high orientating accuracy.
- The Y-axis features a lightweight structure and is directly driven by a servo for high positioning accuracy.
- Box ways on the Y-axis help to increase stability during cutting.
- Y-axis travel is 100mm (±50mm), allowing for machining various workpieces with high efficiency.
- The sub-spindle can pick the workpiece directly from the main spindle by programming, allowing for machining of the other side of the workpiece. This saves machining time as the spindle does not stop for loading or unloading the workpiece.
