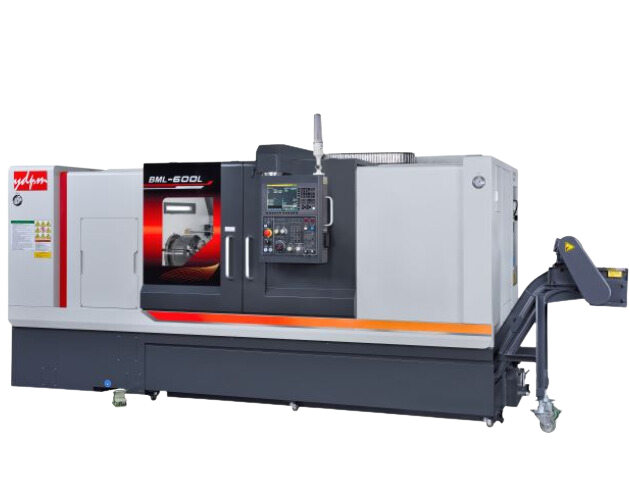

BML-600L Series
Boxway Turning Center
Description：
- Slant bed design
- High quality cast iron
- Box ways on X, Y, Z axes
- Twin spindles/ single turret
Scroll Right for More| ITEM | BML-600L | BML-600LY | BML-600LT | BML-600LTY |
| Swing Over bed | Ø600 | Ø600 | Ø600 | Ø600 |
| Swing Over Saddle | Ø450 | Ø450 | Ø450 | Ø450 |
| Max. Machining Dia. | Ø420 | BMT65: Ø380 VDI40: Ø285 |
Ø420 | BMT65: Ø380 VDI40: Ø285 |
| Max. Machining Length | STD: 1,280 mm (10”) OPT: 1,260 mm (12”) |
BMT65: STD: 1,220 (10”) OPT: 1,200 (12”) VDI40: STD: 1,260 (10”) OPT: 1,240 (12”) |
STD: 1,210 mm (10”) OPT: 1,190 mm (12”) |
BMT65: STD: 1,190 (10”) OPT: 1,170(12”) VDI40: STD: 1,210(10”) OPT: 1,190(12”) |
| Draw Bar Dia. | STD: Ø75 (10") OPT: Ø78 (10")/ Ø91 (12") |
STD: Ø75 (10") OPT: Ø78 (10") / Ø91 (12") |
Main Spindle: STD: Ø75 (10") OPT: Ø78 (10")/ Ø91 (12") Sub Spindle: Ø45 |
|
| X-axis | 230(210+20) mm | BMT65: 206 (190+16) mm VDI40: 206 (142.5+63.5) mm |
230(210+20) mm | BMT65: 206(190+16) mm VDI40: 206(142.5+63.5) mm |
| Y-axis | - | 100 (50+50) mm | - | 100(50+50) mm |
| Z-axis | 1,330 mm (10”) 1,320 mm (12”) |
BMT65:1,265 mm VDI40: 1,305 mm |
1,330 mm | BMT65: 1,190 mm VDI40: 1,235 mm |
| Tool Capacity | STD: 10 pcs OPT: 12 pcs |
12 pcs |
STD: 10 pcs OPT: 12 pcs |
12 pcs |
| Chuck Diameter | STD: 10" OPT: 12" |
STD: 10" OPT: 12" |
STD: 10"+6”(W) OPT: 12”+6”(W) |
STD: 10"+6”(W) OPT: 12”+6”(W) |
| Spindle Speeds | STD: 50-3,500 (A2-8, 75mm, 10") OPT: 50-3,000 (A2-8, 78mm, 10") 50-2,500 (A2-8, 91mm, 12") |
STD: 50-3,500 (A2-8, 75mm, 10") OPT: 50-3,000 (A2-8, 78mm, 10") 50-2,500 (A2-8, 91mm, 12") |
Main Spindle: STD: 50-3,500(A2-8, 75mm, 10") OPT: 50-3,000(A2-8, 78mm, 10") 50-2,500(A2-8, 91mm, 12") Sub Spindle: 6,000 (A2-5) |
|
| Spindle Nose | A2-8 | A2-8 | Main Spindle: A2-8 Sub Spindle: A2-5 |
|
CS-Axis Function
- The CS-axis function in combination with the live tooling turret enable the machine to perform milling, drilling and tapping operations with only a single setup.
- CS-axis is equipped with rotary encoder for high orientating accuracy.
- The Y-axis features a lightweight structure and is directly driven by a servo for high positioning accuracy.
- Box ways on the Y-axis help to increase stability during cutting.
- Y-axis travel is 100mm (±50mm), allowing for machining various workpieces with high efficiency.
- The sub-spindle can pick the workpiece directly from the main spindle by programming, allowing machining of the other side of the workpiece. This saves machining time as the spindle does not stop for loading or unloading the workpiece.
